Multi Loop Solid State Relay >> 4-Loops Solid State Relay AC YSCF10-4L

Features and Application

1. Small volume, waterproof, anti vibration, no noise, no contact arc;
2. Photoelectric isolation, high withstand voltage, long service life, strong anti-interference and high reliability;
3. AC load adopts bidirectional thyristor output, zero current on and zero current off;
4. The input signal is compatible with TTO and COMS;
5. .

Application:
Applications: Petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine tools, plastic machinery, fitness equipment, small motors, incandescent lamps, solenoid valves, entertainment facilities, medical, heating and temperature control equipment, etc.
Especially suitable for anti-corrosion, damp, dustproof, explosion-proof and other occasions.
It is a replacement product of small intermediate relay.

Model YSCF210-4L YSCF225-4L
YSCF215-4L YSCF230-4L
YSCF220-4L YSCF240-4L
Voltage 24-380VAC
Current (10A 15A 20A 25A 30A 40A)x4 »Ø·
Control Voltage 10-30VDC
Control Current 6-25mA
On-state Voltage Drop ¡Ü 1.3V
On-state Leakage Current ¡Ü 2mA
Switching Time 10ms
Isolation Voltage ¡Ý2500V
Insulation Voltage ¡Ý2000V
Action Indication 4x LED
Temperature -40-80¡æ
Size 58¡Á45¡Á32(mm)
Installation Method Bolt Fixing M4
Weight 130g
Size and
Installation Method(mm)

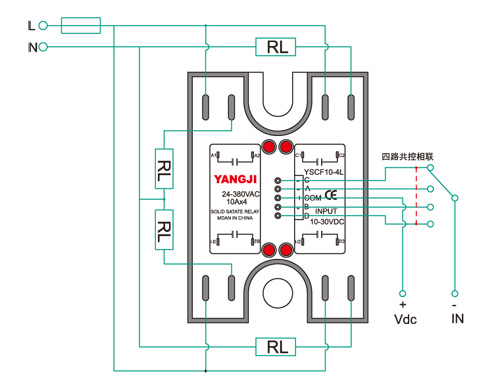

Wiring Diagram
Code K09L
