Single-phase Solid State Relay DC >> Single-phase solid state relay DC YHD06DF/YHD11DF/YHD22DF/YHD40DF

Features and Application

1. Small volume, waterproof, anti vibration, no noise, no contact arc;
2. Transformer isolation between input and output, long service life, high reliability;
3. The DC load adopts MOSFET;
4. Extremely low resistance, standardized size, with safety cover
5. The input signal is compatible with TTO and COMS;
6. .

Application:
Applications: Chemical equipment, food machinery, packaging machinery, small motors, incandescent lamps, solenoid valves, entertainment facilities , etc.
Especially suitable for anti-corrosion, damp, dustproof, explosion-proof and other occasions.

Model YHD06100DF
YHD06125DF
YHD06150DF
YHD06200DF
YHD11100DF
YHD11125DF
YHD11150DF
YHD11200DF
YHD22100DF
YHD22125DF
YHD22150DF
YHD22200DF
YHD40100DF
YHD40125DF
YHD40150DF
YHD40200DF
Voltage 5-60VDC 5-110VDC 5-220VDC 5-400VDC
Current 100A 125A 150A 200A 100A 125A 150A 200A 100A 125A 150A 200A 100A 125A 150A 200A
Control Voltage 3-32VDC 3-32VDC 3-32VDC 3-32VDC
Control Current 5-55mA 5-55mA 5-55mA 5-55mA
On-state Voltage Drop ¡Ü 1.5V ¡Ü 1.5V ¡Ü 1.5V ¡Ü 1.5V
On-state Leakage Current ¡Ü 2mA ¡Ü 2mA ¡Ü 2mA ¡Ü 2mA
Switching Time 10ms 10ms 10ms 10ms
Isolation Voltage ¡Ý1500V ¡Ý1500V ¡Ý1500V ¡Ý1500V
Insulation Voltage ¡Ý1500V ¡Ý1500V ¡Ý1500V ¡Ý1500V
Action Indication LED LED LED LED
Temperature -40-80¡æ -40-80¡æ -40-80¡æ -40-80¡æ
Size 58¡Á45¡Á32(mm) 58¡Á45¡Á32(mm) 58¡Á45¡Á32(mm) 58¡Á45¡Á32(mm)
Installation Method Bolt Fixing M4 Bolt Fixing M4 Bolt Fixing M4 Bolt Fixing M4
Weight 240g 240g 240g 240g

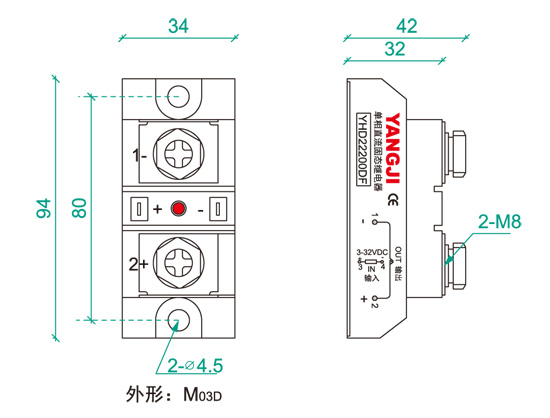

Size and
Installation Method(mm)

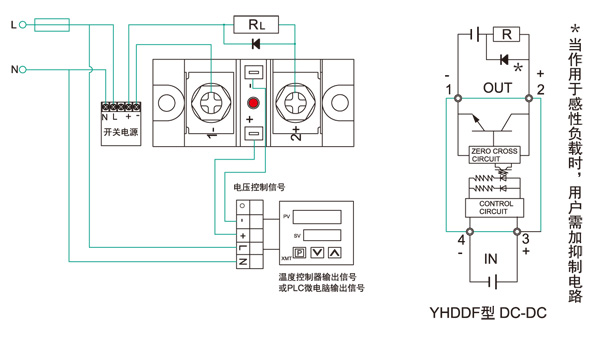

Wiring Diagram
Code M03D
