PCB Solid State Relay >> PCB Solid State Relay YJGX-4F¡õ


Features and Application

1. Small volume, waterproof, anti vibration, no noise, no contact arc;
2. Photoelectric isolation, high withstand voltage, long service life, strong anti-interference and high reliability;
3. AC load adopts bidirectional thyristor output, zero current on and zero current off;
4. DC load adopts triode output, with high conduction voltage drop and fast switching speed;
5. The input signal is compatible with TTO and COMS;
6. PCB welding installation, standard modular size;
7. .

Application:
Applications: chemical equipment, food machinery, packaging machinery, textile machinery, CNC machine tools, fitness equipment, entertainment facilities, small motors, incandescent lamps, solenoid valves, can also be used as the driving level of high-power electromagnetic relay.
Especially suitable for anti-corrosion, damp, dustproof, explosion-proof and other occasions.

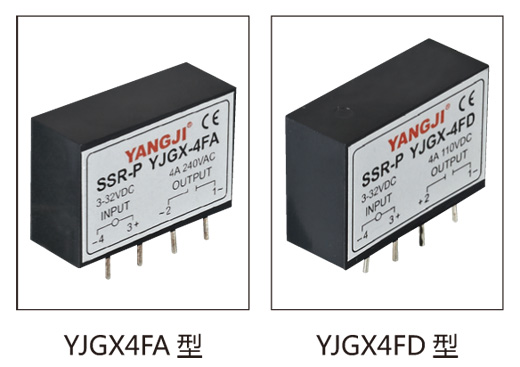

Model YJGX-4FA(DC-AC) YJGX-4FD(DC-DC)
 Current 4A
Voltage 240VAC/380VAC 60VDC/110VDC/220VDC
Control Voltage 3-32VDC 3-32VDC
Control Current 6-35mA 6-35mA
Insulation Voltage ¡Ý1500V
On-state Voltage Drop ¡Ü1.1V ¡Ü1.3V
On-state Leakage Current ¡Ü1mA ¡Ü1mA
Isolation Voltage ¡Ý2000V ¡Ý1500V
Switching Time 10ms 10ms
Action Indication ON ON
Temperature -40¡æ--80¡æ -40¡æ--80¡æ
Weight 16g

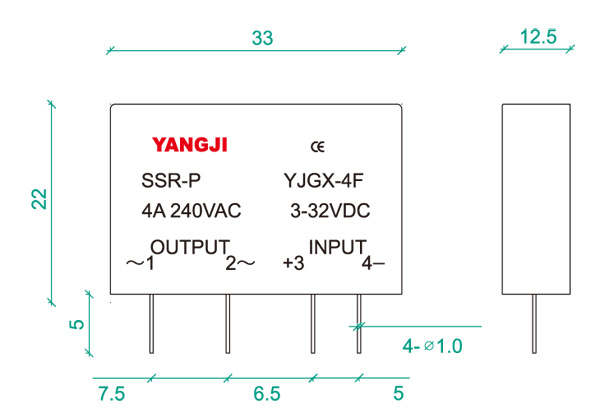

Size(mm)
33¡Á12.5¡Á22mm

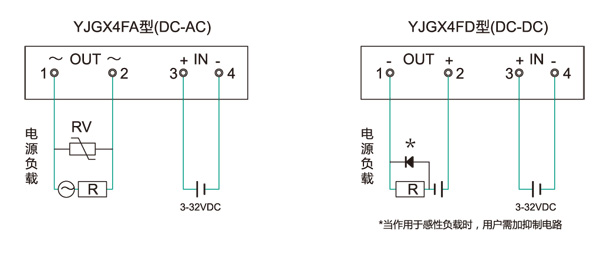

Wiring Diagram
Code J04
